Dual Motor 3-Stage Height Adjustable Standing Desk Frame with Reversed Square Columns – V-MOUNTS JSD2-01-D

High-performance sit-stand desk frame with 3-stage dual motors, extended height range, anti-collision, and memory control

Desk Frame Color Options	Black/White/Gray
Materials	Iron,Plastic
MAX Load Capacity	100kg/220lbs

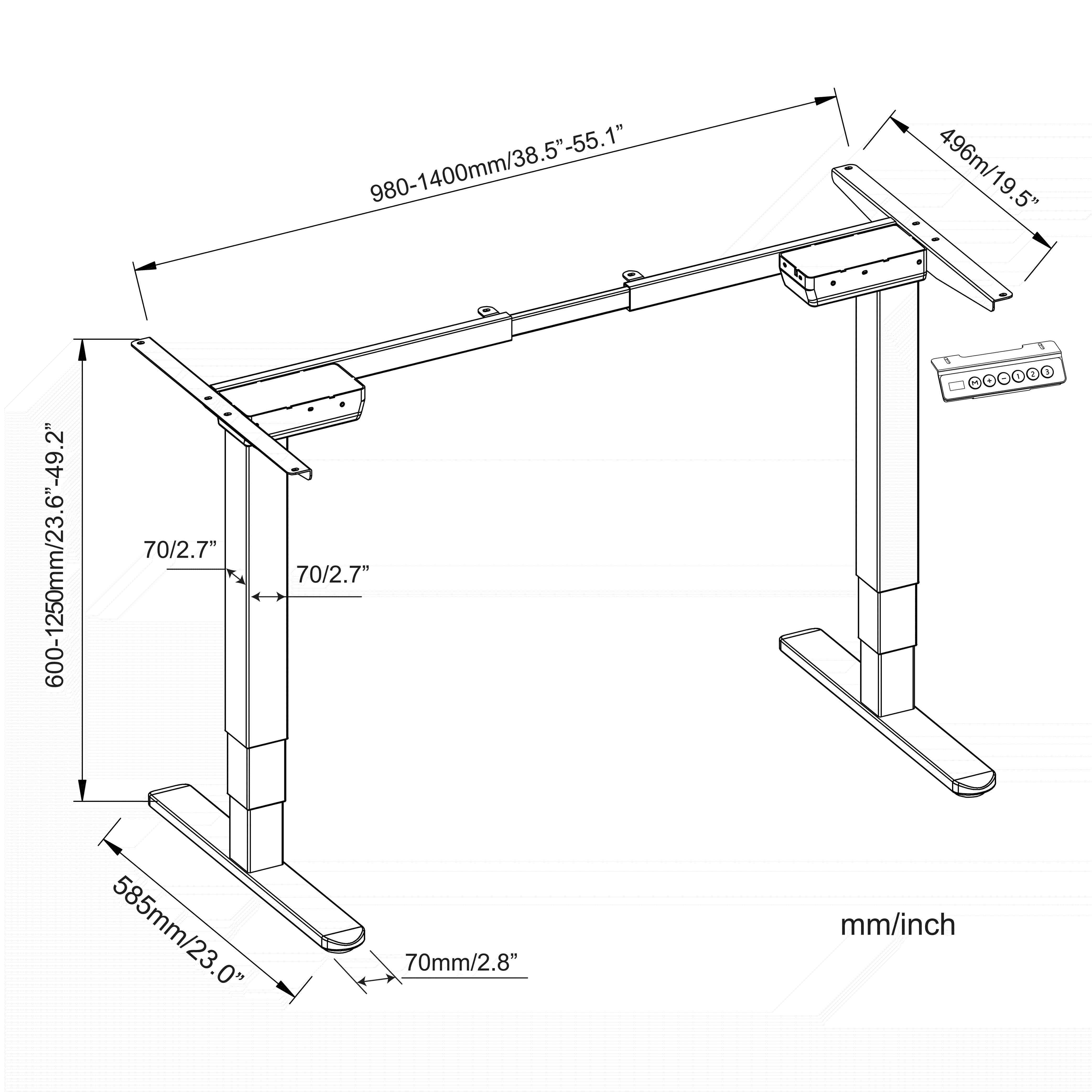

Desk frame Size	(980-1400)x496mm

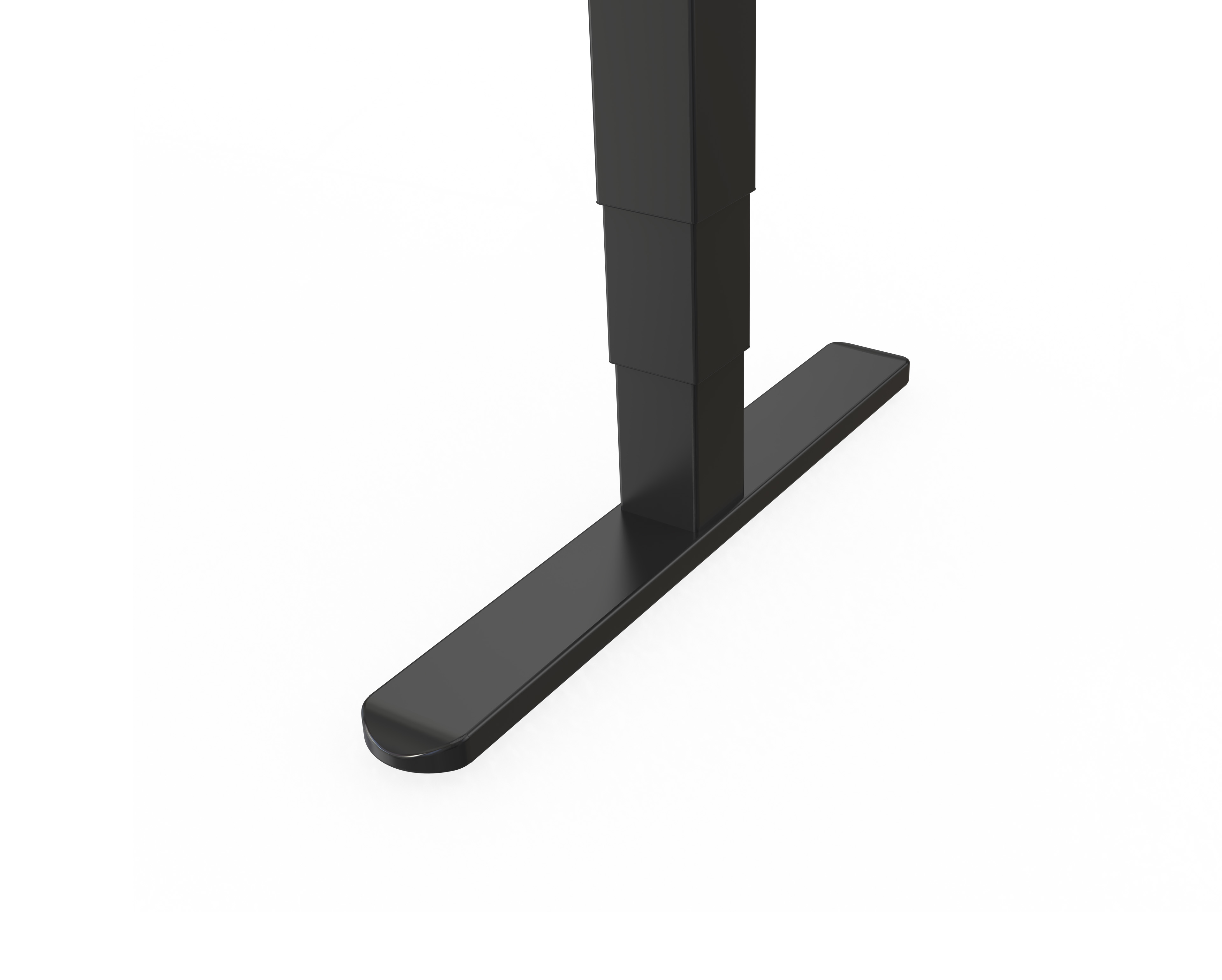

Leg Type	3‑Stage Reversed Square‑Column

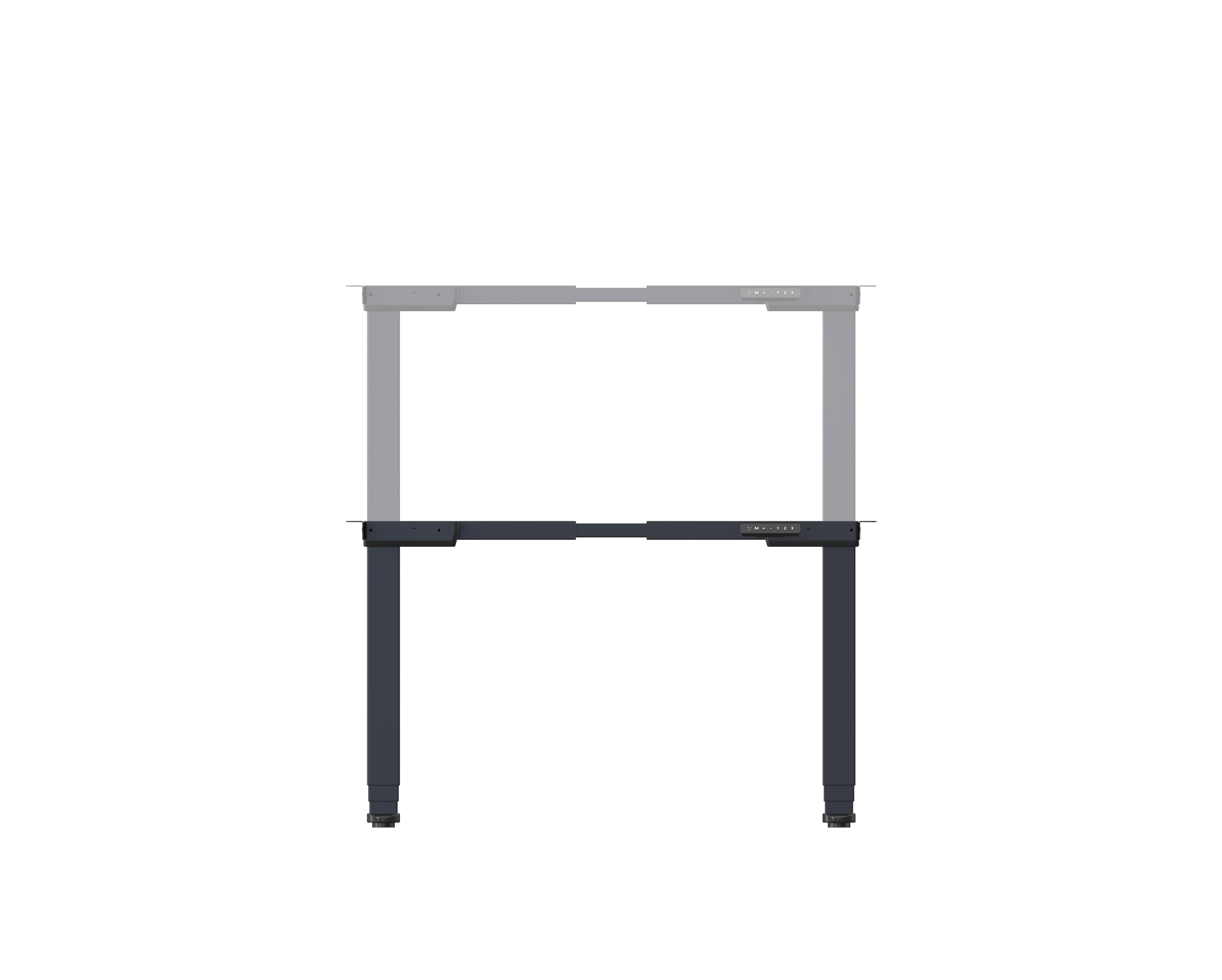

Adjustable Height Range	600-1250mm

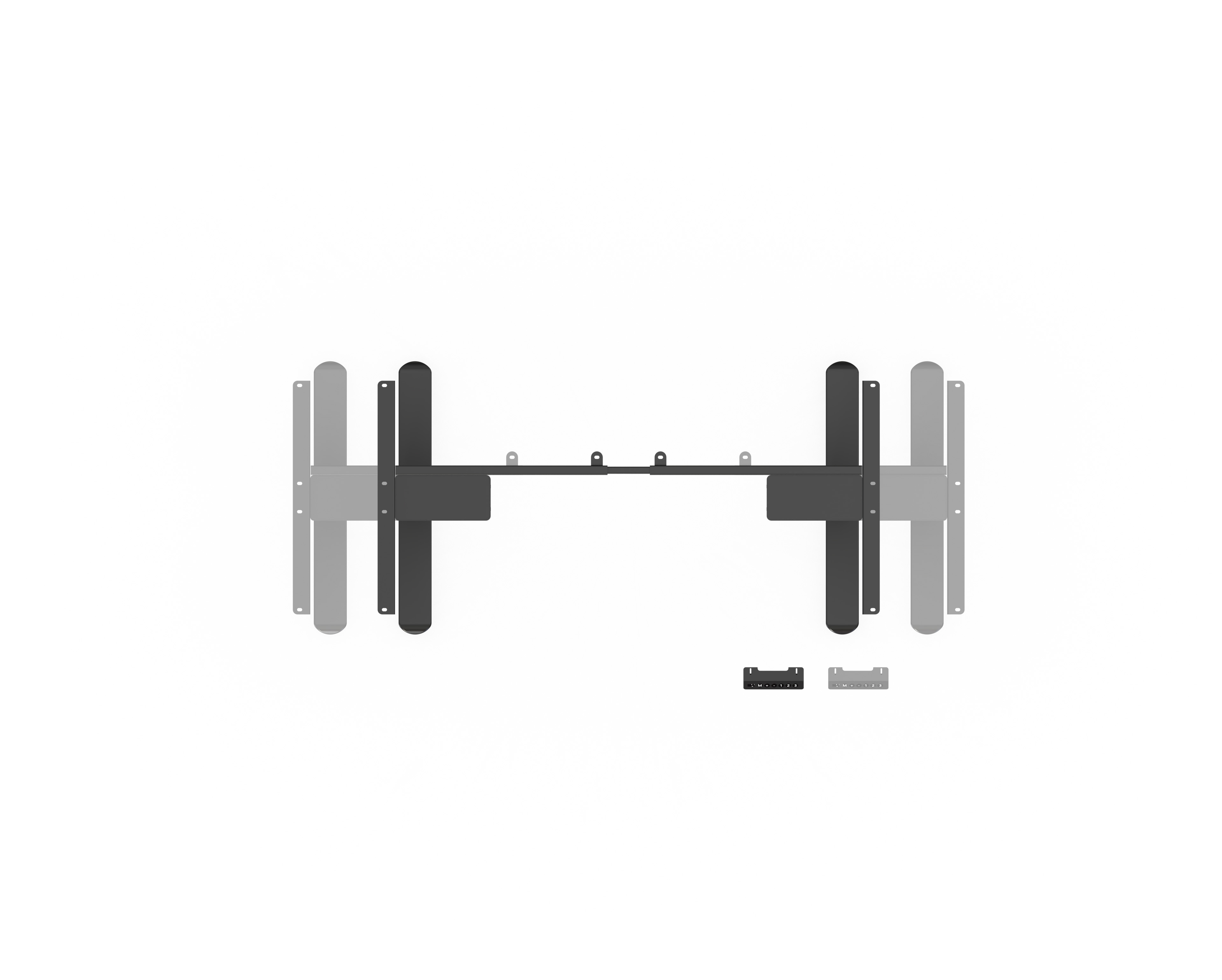

Width range	980-1400mm
Motor Type	Dual brushed motor
Column Pipe Size	70x70x1.5/65x65x1.5/60x60x1.5mm
Adjustment Method	6-button 3-memory hand controller
Lift Speed	30mm/s
Decibel Level	≤55dB

1. 3-Stage Dual Motor System for Extended Height Range

Features a robust dual motor lift mechanism with three telescopic segments, delivering smooth, quiet, and stable height adjustments from 600–1250mm.

2. Reversed Square Columns for Maximum Stability

Reversed-installed square steel columns enhance structural rigidity, offering clean aesthetics and improved weight-bearing—up to 100kg (220lbs).

3. Smart Controller with 3 Memory Presets

Equipped with a 6-button intelligent hand controller with LED display and 3 customizable memory settings for quick sit-to-stand transitions.

4. Built-in Anti-Collision Safety System

Obstacle detection halts and reverses movement to prevent damage or injury, ensuring safe use in shared or home environments.

5. Whisper-Quiet Operation with High Lift Speed

Lifts at 30mm/s with noise levels below 55dB—ideal for focused workspaces or quiet study areas without disruption.
